- 분류 : 계측센서 > 토크/RPM 센서
- 제조사 : HIMMELSTEIN
- 정밀도 : 0.05%
- 허용과부하 : 200%
- 정격출력 : ±10VDC
|
|
|

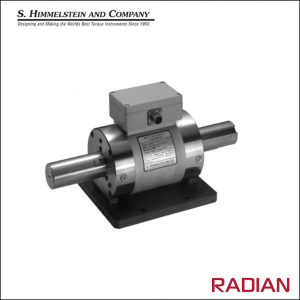

Rotating, Analog Torque Transducers |
| |
✓ Available Outputs: |
| |
|
- mV/V strain gage |
|
| |
|
- 4-20 mA or 12±8 mA |
|
| |
|
- ±5 or ±10 volts dc |
|
| |
✓ Choose from wide variety of configurations |
For selection assistance, call 1-800-632-7873 |
|
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
|
|
| Title |
mV/V Output Low Range Transducers, 2X |
mV/V Output Torque Transducers - 2X, Shaft |
mV/V Output Torque Transducers - 2X, Flanged |
mV/V Output Low Range Transducers, 4X |
mV/V Output Torque Transducers - 4X, Shaft |
mV/V Output Torque Transducers - 4X, Flanged |
2-Wire Torque Transmitters, Shaft |
2-Wire Torque Transmitters, Flanged |
| Model |
28000T |
28000T Series |
28000T Series |
29000T |
29000T Series |
29000T Series |
39000X Series |
39000X Series |
| Description |
Shaft |
Shaft |
Flanged |
Shaft |
Shaft |
Flanged |
Shaft |
Flanged |
| Range (N-m) |
3 |
452,000 |
452,000 |
1.41 |
226,000 |
226,000 |
226,000 |
226,000 |
| Range (lbf-in) |
26.552 |
4,000,537.063 |
4,000,537.063 |
12.48 |
2,000,268.532 |
2,000,268.532 |
2,000,268.532 |
2,000,268.532 |
| Mechanical Overload |
200% |
200% |
200% |
400% |
400% |
400% |
400% |
400% |
| Accuracy |
±0.1 |
±0.1 & ±0.05 |
±0.1 & ±0.05 |
±0.1 |
±0.1 & ±0.05 |
±0.1 & ±0.05 |
±0.1 & ±0.05 |
±0.1 & ±0.05 |
| Speed |
25,000 |
15,000 |
8,000 |
25,000 |
15,000 |
15,000 |
15,000 |
8,000 |
| Output Signal |
mV/V |
mV/V |
mV/V |
mV/V |
mV/V |
mV/V |
4-20 mA or 12±8 mA |
4-20 mA or 12±8 mA |
| Overrange |
ext. amplifier dependent |
ext. amplifier dependent |
ext. amplifier dependent |
ext. amplifier dependent |
ext. amplifier dependent |
ext. amplifier dependent |
125% |
125% |
| Compatible Display |
701, 711, 721 |
701, 711, 721 |
701, 711, 721 |
701, 711, 721 |
701, 711, 721 |
701, 711, 721 |
706, 726, 766 |
706, 726, 766 |
| Specification Sheet |
B716 |
B761 |
B761 |
B716 |
B709 |
B709 |
B7300 |
B7300 |
|
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
|
|
| Title |
Low Capacity DC Operated Torque Transducers - 2X |
DC Operated Torque Transducers - 2X, Shaft |
DC Operated Torque Transducers - 2X, Flanged |
Low Capacity DC Operated Torque Transducers - 4X |
DC Operated Torque Transducers - 4X, Shaft |
DC Operated Torque Transducers - 4X, Flanged |
High Overload DC Operated Torque Transducers - 10X, Shaft |
High Overload DC Operated Torque Transducers - 10X, Flanged |
| Model |
48000V |
48000V Series |
48000V Series |
49000V |
49000V Series |
49000V Series |
59000V Series |
59000V Series |
| Description |
Shaft |
Shaft |
Flanged |
Shaft |
Shaft |
Flanged |
Shaft |
Flanged |
| Range (N-m) |
3 |
452,000 |
452,000 |
2 |
226,000 |
226,000 |
83,040 |
83,000 |
| Range (lbf-in) |
26.552 |
4,000,537.063 |
4,000,537.063 |
17.701 |
2,000,268.532 |
2,000,268.532 |
734,965.924 |
734,611.894 |
| Mechanical Overload |
200% |
200% |
200% |
400% |
400% |
400% |
1000% |
1000% |
| Accuracy |
±0.1 |
±0.1 & ±0.05 |
±0.1 & ±0.05 |
±0.1 |
±0.1 & ±0.05 |
±0.1 & ±0.05 |
±0.1 |
±0.1 |
| Speed |
25,000 |
15,000 |
8,000 |
25,000 |
15,000 |
8,000 |
15,000 |
8,000 |
| Output Signal |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
| Overrange |
130% |
133% |
133% |
133% |
133% |
133% |
133% |
133% |
| Compatible Display |
703, 723, 733 |
703, 723, 733 |
703, 723, 733 |
703, 723, 733 |
703, 723, 733 |
703, 723, 733 |
703, 723, 733 |
703, 723, 733 |
| Specification Sheet |
B7402 |
B7401 |
B7401 |
B7402 |
B7400 |
B7400 |
B7590 |
B7590 |
|
 |
 |
|
|
|
| Title |
Dual Range DC Operated Torque Transducers - Shaft |
Dual Range DC Operated Torque Transducers - Flanged |
| Model |
79000V Series |
79000V Series |
| Description |
Shaft |
Flanged |
| Range (N-m) |
452,000 |
452,000 |
| Range (lbf-in) |
4,000,537.063 |
4,000,537.063 |
| Mechanical Overload |
200% |
200% |
| Accuracy |
±0.1 |
±0.1 |
| Speed |
15,000 |
8,000 |
| Output Signal |
±10 Vdc, ±5 Vdc |
±10 Vdc, ±5 Vdc |
| Overrange |
133% |
133% |
| Compatible Display |
703, 723, 733 |
703, 723, 733 |
| Specification Sheet |
B7700 |
B7700 | |
|
